90 Degree Elbow Manufacturer
Table of Contents
Introduction
Sk Steel Corporation is India’s Best Mild Steel Flange Manufacturer in Mumbai, we are also known as Carbon Steel Flanges and Pipe Fittings Manufacturer. With a rich legacy of excellence spanning several decades, we take immense pride in being a trusted name in the industry. Our commitment to quality and customer satisfaction has earned us acclaim from clients across India and beyond.
Within the complex realms of industrial, commercial, and residential infrastructure lie hidden networks of pipes that transport the essential elements of contemporary life – including water, gas, chemicals, oil, and steam. Although the pipes usually take center stage, the pipe fittings especially the common 90-degree elbow—are the true unsung heroes of these systems. We are the best 90 Degree Elbow Supplier.
This component, which may appear simple but is designed to redirect flow at a perfect right angle, is crucial for navigating intricate layouts, maximizing space efficiency, and guaranteeing the safe and effective transport of fluids and gases.This article examines the importance of the 90-degree elbow in detail, looking at its various uses, the materials and production methods used to make it, and its vital contribution to system integrity. We will underscore the reasons SK Steel Corporation is recognized as a leading manufacturer of 90 Degree Elbows in India, known for its unmatched quality and dependability.
The Fundamental Purpose of a 90-Degree Elbow
The main purpose of a 90-degree elbow is to change the direction of a pipeline exactly by 90 degrees. This task, which appears simple, is essential to the design of nearly all piping systems. Consider the challenge of routing pipes around corners, equipment, or structural obstacles without being able to make sharp, controlled turns. In many real-life situations, the entire system would be impractical, inefficient, and impossible to install. We are the best 90 Degree Elbow in Maharashtra.
Why Choose SK Steel Corporation
- Uncompromising Quality Assurance: At SK Steel Corporation, quality is more than just a buzzword; it constitutes the essence of what we do. We comply with the most stringent global quality management standards as a manufacturer certified to ISO 9001:2015. All 90-degree elbows are subjected to thorough multi-stage quality assessments, starting with an examination of raw materials and concluding with testing of the finished product in our state-of-the-art Quality Lab. We guarantee precise dimensions, perfect finish, and compliance with specifications for chemical and mechanical properties. This careful procedure ensures no defects and outstanding performance.
- Detailed Product Specifications: Our 90-degree elbows are produced in accordance with internationally acknowledged standards such as ASME B16.9 (for butt-weld fittings – encompassing sizes from 1/2″ to 80″ and various schedules like SCH 10, 20, 40, STD, XS, etc.) and ASME B16.11 (for forged socket-weld and threaded fittings – covering classes of 3000, 6000, and 9000 lbs). This guarantees flawless compatibility and dependability in your piping systems.
- Advanced Manufacturing Capabilities: Utilizing state-of-the-art manufacturing methods such as hot pushing, precision machining, and top-notch welding, we create seamless and welded elbows that boast excellent surface finishes and consistent wall thicknesses. Thanks to our advanced facilities, we are able to manage a diverse array of sizes and complexities.
- Expert Technical Support and Customization: Our skilled engineering team comprehends the complex requirements of different industries. Our business is not limited to selling products; we provide professional technical advice to assist you in choosing the best 90-degree elbow for your particular application, taking into account aspects such as fluid type, temperature, pressure, and spatial limitations. Moreover, we can produce bespoke 90-degree elbows tailored to customer designs and specifications, encompassing non-standard angles, sizes, and materials.
- Dependable Supply Chain and Prompt Delivery: Aware of the significance of project timelines, SK Steel Corporation upholds an effective production timetable and strong logistics system. We are dedicated to swift order processing and punctual delivery throughout India and for exports, so your projects remain on schedule.
- Customer-Centric Approach: At SK Steel Corporation, it is of utmost importance to establish long-term relationships with our clients. We aim to comprehend your changing requirements, offer tailored support, and guarantee total satisfaction from the moment of inquiry through to delivery. Trust, transparency, and consistent performance are the foundations of our reputation.
Applications of 90 Degree Elbow
- Oil and Gas Sector: From drilling rigs and offshore platforms to extensive pipeline networks (natural gas, crude oil, refined products) and large-scale refineries, 90-degree butt-weld elbows made of carbon steel, alloy steel, and stainless steel (for sour gas or corrosive environments) are essential for directing flow, managing pressure, and ensuring safe transport.
- Power Generation: Within thermal power plants, high-pressure steam lines, cooling water systems, and exhaust ducts utilize 90-degree elbows crafted from alloy steels (such as P11, P22, P91) to endure extreme temperatures and pressures. For safety-critical systems in nuclear plants, there is a need for materials of exceptionally high quality and for manufacturing that is highly meticulous.
- Chemical and Petrochemical Facilities: These plants manage a wide variety of corrosive, toxic, and high-temperature substances. 90-degree elbows made from stainless steel, duplex steels, and nickel alloy are crucial for process lines, reactors, heat exchangers, and storage tank connections to ensure chemical compatibility and prevent leaks.
- Water and Wastewater Treatment: In pumping stations, filtration units, and distribution networks for potable water and sewage systems, large diameter 90-degree elbows are utilized, typically made of carbon steel with protective coatings or stainless steel.
- HVAC Systems: In large-scale air conditioning and ventilation systems for airports, shopping centers, and industrial complexes, 90-degree elbows play a crucial role in promoting efficient airflow by directing conditioned air through intricate ductwork.
- Shipbuilding and Marine Industry: Corrosion-resistant stainless steel and copper-nickel alloy 90-degree elbows are essential for onboard piping systems that manage fuel, water, and waste, as they can endure the severe conditions of the marine environment.
- Mining and Slurry Transport: Heavy-duty 90-degree elbows are essential for transporting abrasive slurries (mixtures of solids and liquids) in mining operations. To withstand erosion, these frequently necessitate specialized linings or materials that are resistant to wear.
- Food and Beverage Industry: In hygienic process lines for dairy, brewing, soft drinks, and food production, stainless steel 90-degree elbows are essential for maintaining sanitary conditions and facilitating cleaning.
Table of Specifications 90 Degree Elbow
| Specification | Details |
|---|---|
| Product Name | 90 Degree Pipe Elbow |
| Manufacturer | SK Steel Corporation |
| Size Range | ½” to 48” (DN15 – DN1200) |
| Type | Long Radius (LR), Short Radius (SR) |
| Connection Type | Butt Weld, Socket Weld, Threaded, Flanged |
| Wall Thickness | SCH 10, 20, 40, 80, 160, XXS |
| Material Grades | Stainless Steel (304, 316, 321), Carbon Steel (ASTM A234 WPB), Alloy Steel (ASTM A234 WP5, WP11, WP22), Duplex & Super Duplex, Copper Nickel |
| Manufacturing Standard | ASME B16.9, ASME B16.11, ASTM, DIN, JIS, ISO |
| Surface Finish | Pickled, Sand Blasted, Painted, Galvanized, Polished |
| Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Certification | ISO 9001:2015, PED, IBR, CE |
| Testing Methods | Hydrostatic, Radiography, Ultrasonic, MPI |
| Packaging | Wooden Crates, Pallets, Customized Packing |
Types of 90 Degree Elbows
Long Radius 90 Degree Elbow
- Description: The centerline radius is 1.5 times the nominal pipe diameter.
- Use Case: Preferred in high-pressure applications where smooth flow with minimal resistance is required.
- Applications: Petrochemical, Oil & Gas, Power Plants.
Short Radius 90 Degree Elbow
- Description: The centerline radius is equal to the nominal pipe diameter.
- Use Case: Ideal for applications with limited installation space.
- Applications: Plumbing, Fire Protection Systems, Shipbuilding.
Threaded 90 Degree Elbow
- Description: Equipped with threaded ends for easy assembly and disassembly.
- Use Case: Suitable for low-pressure piping systems.
- Applications: Water Distribution, HVAC Systems, Industrial Cooling Lines.

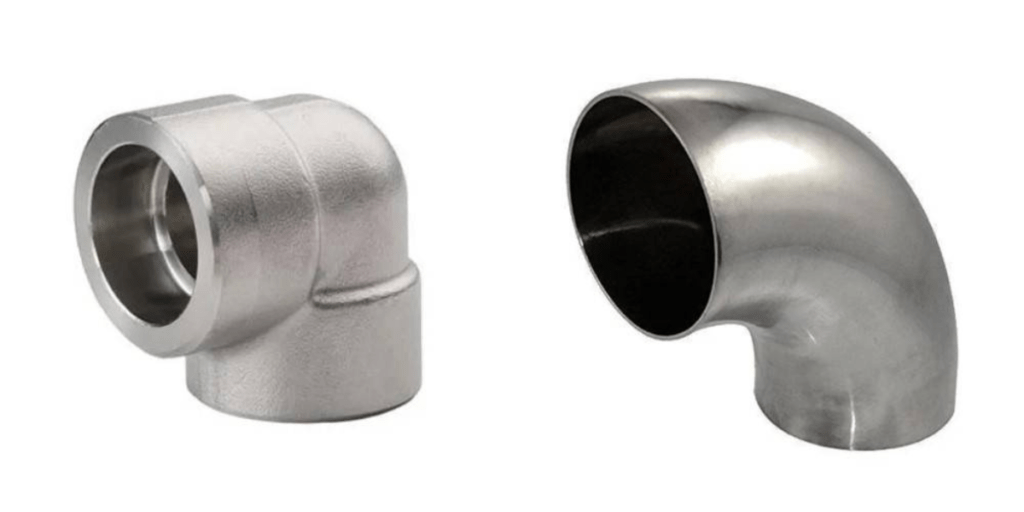

Socket Weld 90 Degree Elbow
- Description: Fitted by inserting a pipe into a recessed area of the fitting and then welding.
- Use Case: Provides a strong, leak-proof joint for high-pressure pipelines.
- Applications: Chemical Processing, Food & Beverage Industries.
Reducing 90 Degree Elbow
- Description: Used to connect pipes of different diameters while changing direction.
- Use Case: Adjusts pipeline size and direction simultaneously.
- Applications: Industrial Piping, Gas Transmission, Plant Maintenance.
Conclusion
Though it is a small part, the 90-degree elbow is essential for the functionality, efficiency, and safety of industrial piping systems around the globe. For crucial uses, its exact production, integrity of materials, and proper choice are essential. We are the best Best 90 Degree Elbow Manufacturer.
In this specialized field, SK Steel Corporation shines as a model of excellence. We are a top manufacturer of 90-Degree Elbows, combining cutting-edge technology, skilled engineering, and an unwavering dedication to quality in order to provide fittings that work perfectly even in the most challenging situations. Located in Ghaziabad, we are thoroughly prepared to meet your needs with unmatched accuracy and dependability.
